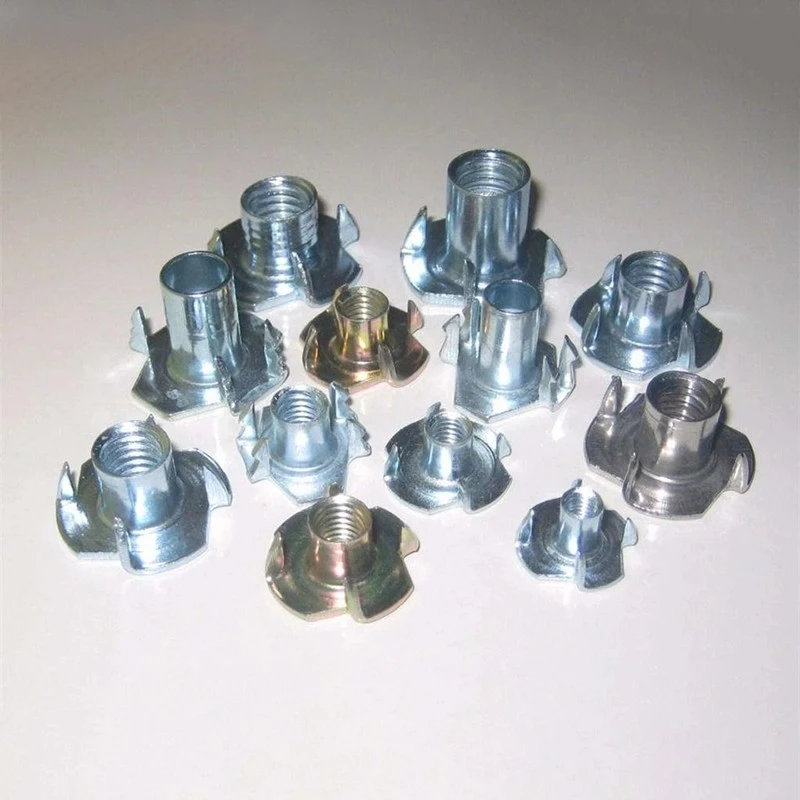

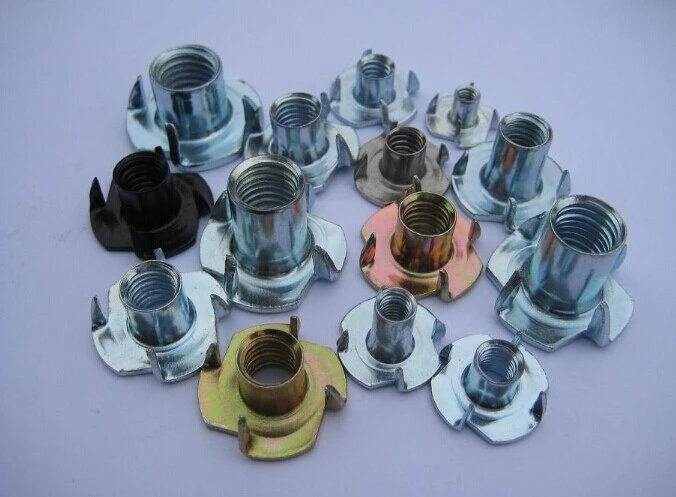

Grade 4.8 Lock Nut DIN1624 M2-M30 Four Claw Furniture Insert Nut With Blue-White Zinc Plated

A four-claw nut refers to a nut, a part that is screwed together with a bolt or screw for tightening. A must-have original component for all manufacturing machinery, the four-claw nut is a part that closely connects mechanical equipment. Only four-claw nuts and screws of the same specifications can be connected together through the threads on the inside.

Standard	DIN,ASTM/ANSI JIS EN ISO,AS,GB
Diameter	M4-M10
Custom-made	Accepted
Material	Carbon Steel, High Strength Steel, Stainless Steel, Brass etc.
Surface treatment	Hot Galvanizing, Black, Color-Zinc, Blue-White Zinc
Package	Plastic bag, Boxes and cartons, Pallets, Customized
Payment terms	T/T, L/C, etc.
Certifications	ISO 9001
Note	Free Samples could be provided for standard fastener

How to use four-claw nuts

The basic steps for using a four-claw nut are as follows:

Preparation: Make sure the prong nuts and fasteners (such as bolts) are in clean condition.

Installation process:

Slide the positioning claw into the movable groove.

Insert the four-claw nut into the fastener through the positioning claw.

Choose the direction of the threads on the inner wall of the collar and ensure that the bolt will not damage the locating jaw when screwing in.

When you need to remove the four-claw nut from the fastener, you can use a tool to rotate the base in the opposite direction, so that the positioning claws gradually come out of the movable groove, and finally the base and collar parts can be removed smoothly.

Precautions:

Excessive torque should be avoided during installation to avoid damaging the positioning claw or four-claw nut.

If it is necessary to operate on an uneven workbench, appropriate support measures should be taken to ensure the stability of the four-claw nut.

Standard: DIN1624

Tee Nuts with Pronge

product-558-359

Thread
d

M10

P	Pitch
d_e
H
d_c
c

0.7	0.7	0.8	1	1	1.25	1.25	1.5
5.6	5.6	6.5	7.7	7.7	10	10	12
6.95	8.95	9.15	10.3	13.3	12.75	16.75	14.5
15	15	17	19	19	22	22	25.5
0.95	0.95	1.15	1.3	1.3	1.75	1.75	1.5
