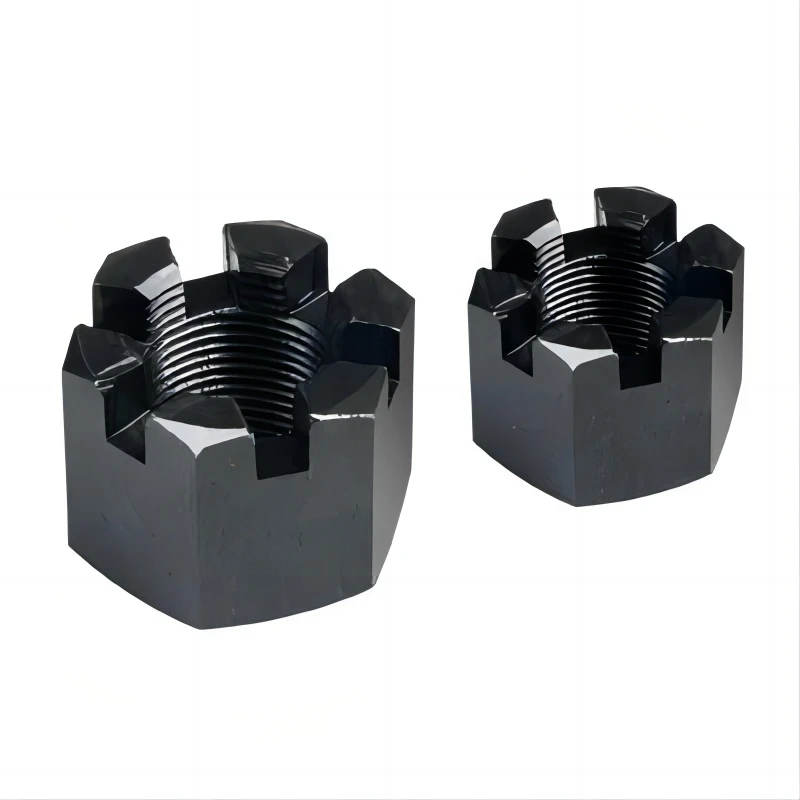

DIN935 Black Hexagonal Slotted Nuts
Our DIN935 slotted nut boasts a range of specifications that make it a reliable choice for engineers and manufacturers alike. With its slotted hex nut and slotted round nut variants, we offer versatility to cater to different needs. The precise dimensions and thread sizes ensure a seamless fit and impeccable functionality.
The function of the slotted nut is to fix the front and rear axle of the vehicle by fastening the screw through the front and rear axle of the wheel, so that the frame and tires are fixed, in order to prevent the nut from breaking. The cotter pin must be fixed through the slot of the slotted nut, and the cotter pin must be fixed to the slotted nut through the middle of the shaft screw, both ends of the screw need to be drilled, the diameter of the hole and the slot width and depth of the slotted nut determine the selection of what specifications of the cotter pin, selected for use When the axle screw and cotter pin and slotted nut are more matched, the nut fixes the front wheel and the frame through the axle screw, and the cotter pin fixes the slotted nut through the hole fastener of the axle screw, so that the slotted nut does not loose, so that the vehicle is not loose when moving.

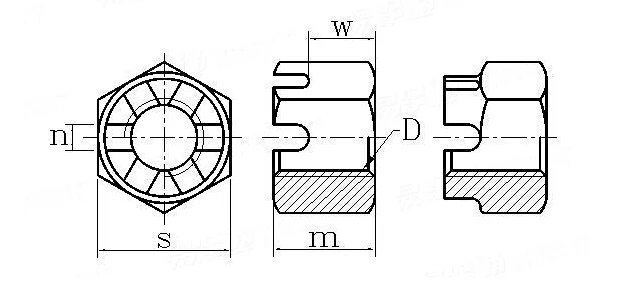

DIN935-1-1987 slotted nut Dimensions
|
Diam |
Pitch |
ID |
n |
s |
w |
||||
|
max |
min |
max |
win |
max |
min |
max |
win |
||
|
M4 |
0.7 |
5 |
4.7 |
1.45 |
1.2 |
7 |
6.78 |
3.2 |
2.9 |
|
M5 |
0.8 |
6 |
5.7 |
1.65 |
1.4 |
8 |
7.78 |
4 |
3.7 |
|
M6 |
1 |
7.5 |
7.14 |
2.25 |
2 |
10 |
9.78 |
5 |
4.7 |
|
M7 |
1 |
8 |
7.64 |
2.25 |
2 |
11 |
10.73 |
5.5 |
5.2 |
|
M8 |
1/1. 25 |
9.5 |
9.14 |
2.75 |
2.5 |
13 |
12.73 |
6.5 |
6.14 |
|
M10 |
1/1.25/1.5 |
12 |
11.57 |
3.05 |
2.3 |
16/17 |
15.73/16.73 |
8 |
7.64 |
|
M12 |
1.25/1.5/1.75 |
15 |
14.57 |
3.8 |
3.5 |
18/19 |
17.73/18.67 |
10 |
9.64 |
|
M14 |
1.5/2 |
16 |
15.57 |
3.8 |
3.5 |
21/22 |
20.67/21.67 |
11 |
10.57 |
|
M16 |
1.5/2 |
19 |
18.43 |
4.8 |
4.5 |
24 |
23.67 |
13 |
12.57 |
|
M18 |
1. 5/2/2.5 |
21 |
20.16 |
4.8 |
4.5 |
27 |
26.16 |
15 |
14.57 |
|
M20 |
1. 5/2/2.5 |
22 |
21.16 |
4.8 |
4.5 |
30 |
29.16 |
16 |
15.57 |
|
M22 |
1. 5/2/2.5 |
26 |
25.16 |
5.8 |
5.5 |
32/34 |
31/33 |
18 |
17.57 |
|
M24 |
2/3 |
27 |
26.16 |
5.8 |
5.5 |
36 |
35 |
19 |
13.48 |
|
M27 |
2/3 |
30 |
29.16 |
5.8 |
5.5 |
41 |
40 |
22 |
21.48 |
|
M30 |
2/3.5 |
33 |
32 |
7.36 |
7 |
46 |
45 |
24 |
23.48 |
|
M33 |
2/3.5 |
35 |
34 |
7.36 |
7 |
50 |
49 |
26 |
25.48 |
|
M36 |
3/4 |
38 |
37 |
7.36 |
7 |
55 |
53.8 |
29 |
28.48 |
|
M39 |
3/4 |
40 |
39 |
7.36 |
7 |
60 |
58.8 |
31 |
30.28 |
|
M42 |
3/4.5 |
46 |
45 |
9.36 |
9 |
65 |
63.1 |
34 |
33.38 |
|
M45 |
3/4.5 |
48 |
47 |
9.36 |
9 |
70 |
68.1 |
36 |
35.38 |
|
M48 |
3/5 |
50 |
49 |
9.36 |
9 |
75 |
73.1 |
38 |
37.38 |
|
M52 |
3/5 |
54 |
52.8 |
9.36 |
9 |
80 |
78.1 |
42 |
41.38 |
|
M56 |
4/5.5 |
57 |
55.8 |
9.36 |
9 |
85 |
82.8 |
45 |
44.38 |
|
M60 |
4/5.5 |
63 |
61.8 |
11.43 |
11 |
90 |
87.8 |
48 |
47.38 |
|
M64 |
4/6 |
66 |
64.8 |
11.43 |
11 |
95 |
92.8 |
51 |
50.26 |
|
M68 |
4/6 |
69 |
67.8 |
11.43 |
11 |
100 |
97.8 |
54 |
53.26 |
|
M72 |
4/6 |
73 |
71.8 |
11.43 |
11 |
105 |
102.8 |
58 |
57.26 |
|
M76 |
4/6 |
76 |
74.8 |
11.43 |
11 |
110 |
107.8 |
61 |
60.26 |
|
M80 |
4/6 |
79 |
77.6 |
11.43 |
11 |
115 |
112.8 |
64 |
63.26 |
|
M85 |
4/6 |
88 |
86.6 |
14.43 |
14 |
120 |
117.8 |
68 |
67.26 |
|
M90 |
4/6 |
92 |
90.6 |
14.43 |
14 |
130 |
127.5 |
72 |
71.26 |
|
M100 |
4/6 |
100 |
98.6 |
14.43 |
14 |
145 |
142.5 |
80 |
79.26 |
Our DIN935 slotted nut is available in a range of sizes and materials to accommodate different requirements.We warmly welcome you to inquiry and buy from our factory. Free samples are available .
