How to Measure Nut Dimensions: A Comprehensive Guide

Mastering proper nut measurement techniques is fundamental to ensuring mechanical assembly quality

In mechanical assembly and component procurement, nuts as one of the most fundamental fasteners have dimensions that directly impact product quality and reliability. Accurate nut measurement not only ensures smooth assembly but also prevents safety hazards caused by dimensional mismatches, such as loosening or fracture.

Key Nut Dimension Parameters and Measurement Methods

1. Thread Specification Measurement

Thread specification represents the most critical dimension parameter:

Thread Type: First identify whether it's metric, imperial, or American standard. Metric threads use millimeters (e.g., M6, M8), while imperial threads use inches (e.g., 1/4"-20, 3/8"-16).

Pitch Measurement: Using a thread gauge is the most accurate method. Alternatively, use calipers to measure the number of threads per inch or 10mm. Metric threads directly indicate pitch (M8×1.25 means 8mm diameter, 1.25mm pitch), while imperial threads specify threads per inch (1/4"-20 indicates 20 threads per inch).

2. Across Flats (Wrench Size)

The across flats dimension determines the required tool size for installation:

Use external calipers or an open-end wrench to measure the distance between two parallel flats.

Common metric sizes include 8mm, 10mm, 13mm, 17mm, and 19mm; imperial sizes include 1/4", 5/16", 3/8", and 1/2".

3. Across Corners

Use external calipers to measure the distance between two opposite corner points.

This dimension is particularly important for determining installation space requirements.

4. Thickness (Height)

Use caliper depth measurement or a height gauge to measure the overall nut thickness.

Record the natural thickness of the nut without applied pressure.

5. Inside and Outside Diameters

Inside Diameter: Measure the minimum diameter of the nut's threaded hole using internal calipers or the three-wire method.

Outside Diameter: Measure the maximum diameter of the nut body using external calipers.

Professional Measurement Tools and Techniques

Essential Measurement Tools:

• Calipers: Digital calipers recommended with 0.01mm accuracy
• Thread Gauges: For accurate thread specification and pitch determination
• Micrometers: Suitable for high-precision measurement applications

Professional Measurement Techniques:

• Temperature Compensation: Perform measurements at standard 20℃ to avoid thermal expansion errors.
• Measurement Force Control: Maintain appropriate force when using calipers - excessive or insufficient pressure affects results.
• Multi-point Measurement: Take multiple measurements for each parameter and average for improved accuracy.
• Standard Reference: Compare measurements with national (GB/T) or international standards (ISO, DIN).

Core Characteristics of High-Quality Nuts

• Professional nut manufacturers typically produce premium nuts with these characteristics:
• Material Consistency: High-quality steel ensuring uniform mechanical properties
• Dimensional Accuracy: All parameters strictly controlled within tolerance ranges
• Uniform Surface Treatment: Even electroplating or hot-dip galvanizing without missed areas or bubbles
• Clear, Regular Threads: Complete thread profiles without burrs or damage

Comprehensive Capabilities of Professional Hardware Manufacturers

When selecting nut suppliers, beyond product quality, the manufacturer's overall capabilities are equally important. An excellent hardware manufacturer should possess these advantages:

1. Comprehensive Quality Certification System

Professional manufacturers maintain international certifications ensuring product quality and management system reliability:

ISO 9001 Quality Management System Certification: Ensures consistent ability to provide products meeting customer and regulatory requirements

ISO 14001 Environmental Management System Certification: Demonstrates compliance with environmental protection requirements during manufacturing

CE, FCC, RoHS Product Certifications: Confirm product compliance with EU and international market safety and environmental standards

These certifications represent not just corporate strength but crucial product quality assurance.

2. Strong R&D and Technical Capabilities

Excellent manufacturers focus on technological innovation and development:

Professional R&D Team: Experienced technical teams continuously improving products and processes

Patent Technologies: Multiple patented technologies ensuring product performance and reliability advantages

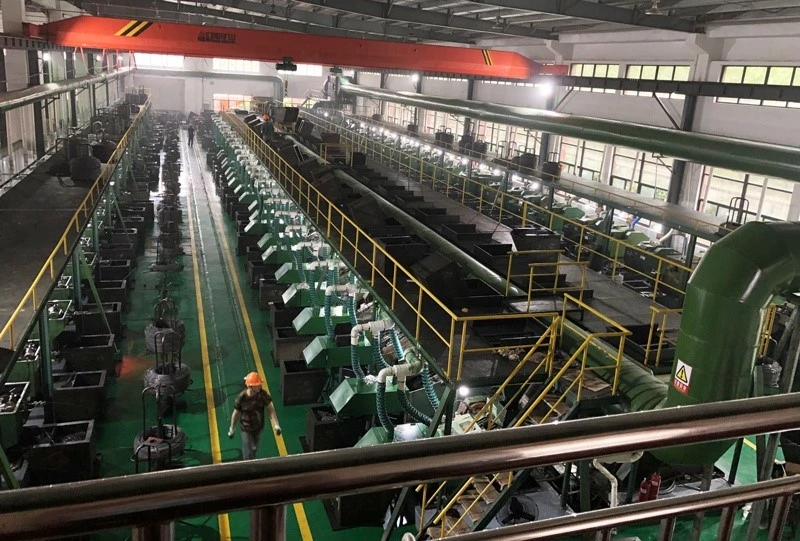

Advanced Equipment: Industry-leading production and inspection equipment guaranteeing manufacturing precision and product consistency

3. Comprehensive After-sales Service System

Professional manufacturers provide complete post-sales support beyond product sales:

Clear Quality Commitments: Explicit warranty policies offering free repair or replacement for material or workmanship defects

Standardized Return Process: Established return policies ensuring customer rights protection

Professional Technical Support: Dedicated teams providing technical consultation and solutions

Conclusion

Accurately measuring nut dimensions represents fundamental knowledge in mechanical design and assembly, while selecting a professional manufacturer with comprehensive quality certification systems, strong R&D capabilities, and complete after-sales service is crucial for project success. Through the measurement methods outlined in this guide, you can accurately evaluate nut specifications and quality, selecting the most appropriate fastener solutions for your projects.

Hygete Hardware, as a professional hardware manufacturer, maintains complete quality management systems, advanced production equipment, and robust R&D capabilities, consistently committed to providing high-quality nuts and other hardware products for B2B clients. We understand industrial customers' requirements for product consistency and reliability, implementing strict control standards from raw material procurement through every production process, ensuring each product meets or exceeds customer expectations.

For more information about our products and capabilities, please visit our website or contact our sales team. We look forward to providing professional fastener solutions and becoming your reliable supply chain partner.
