Carbon Steel Stainless Steel 304/316 Threaded Rods

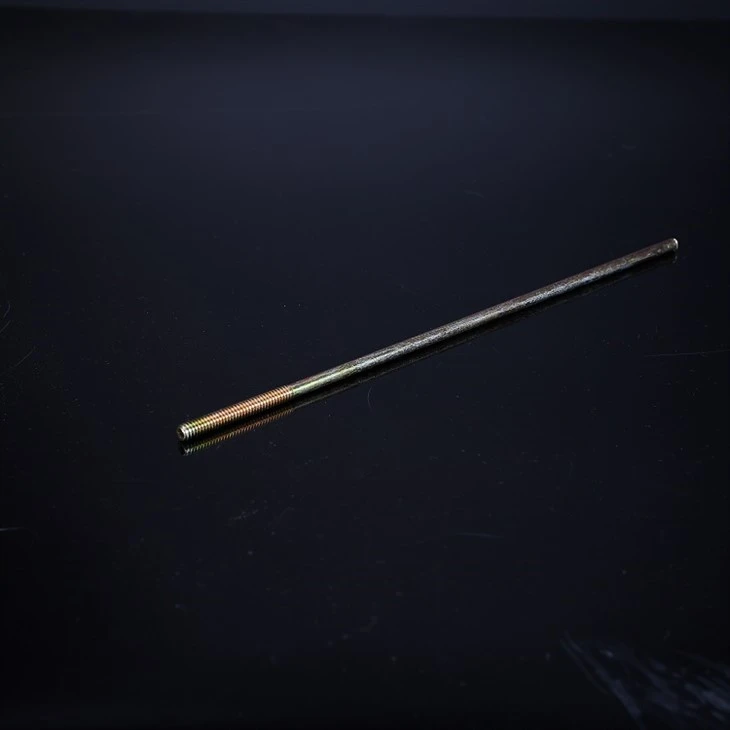

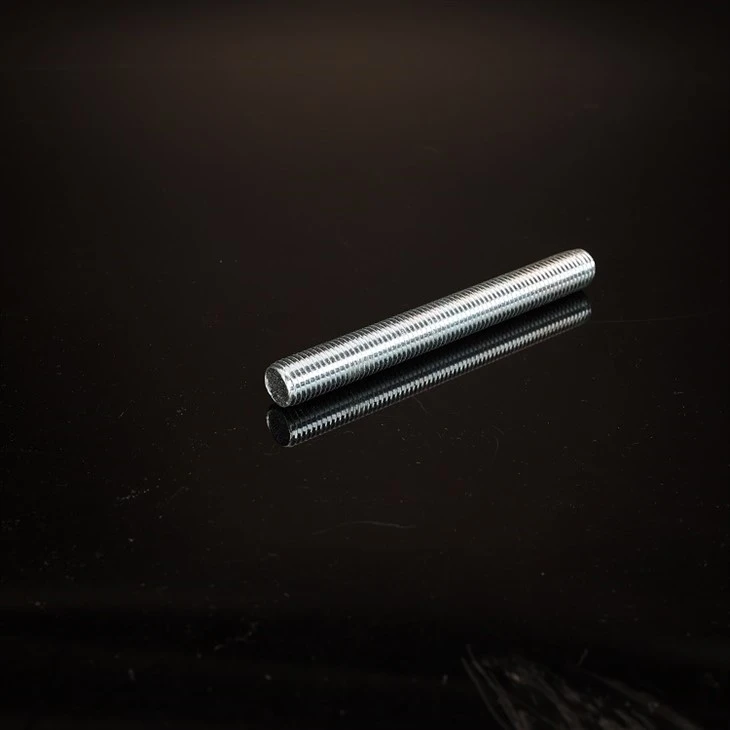

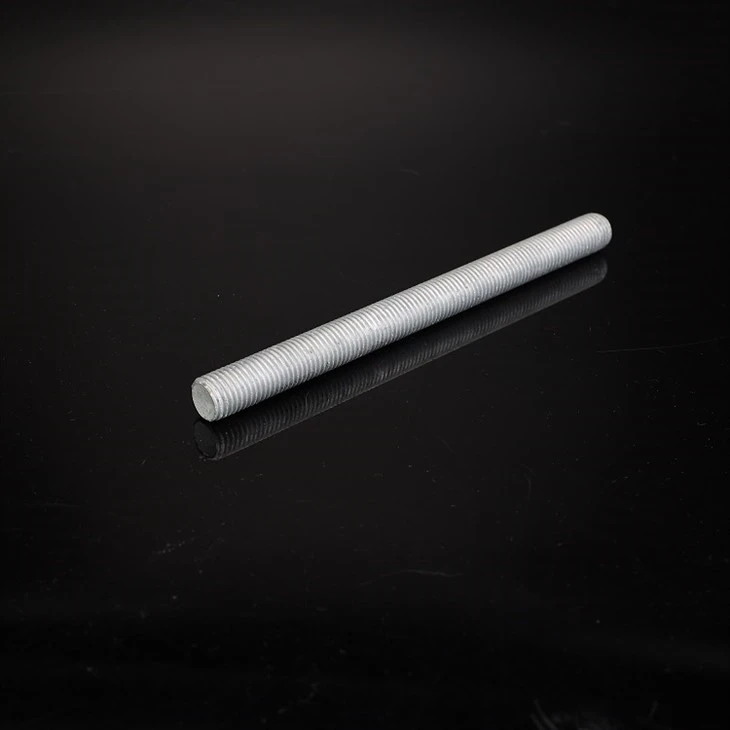

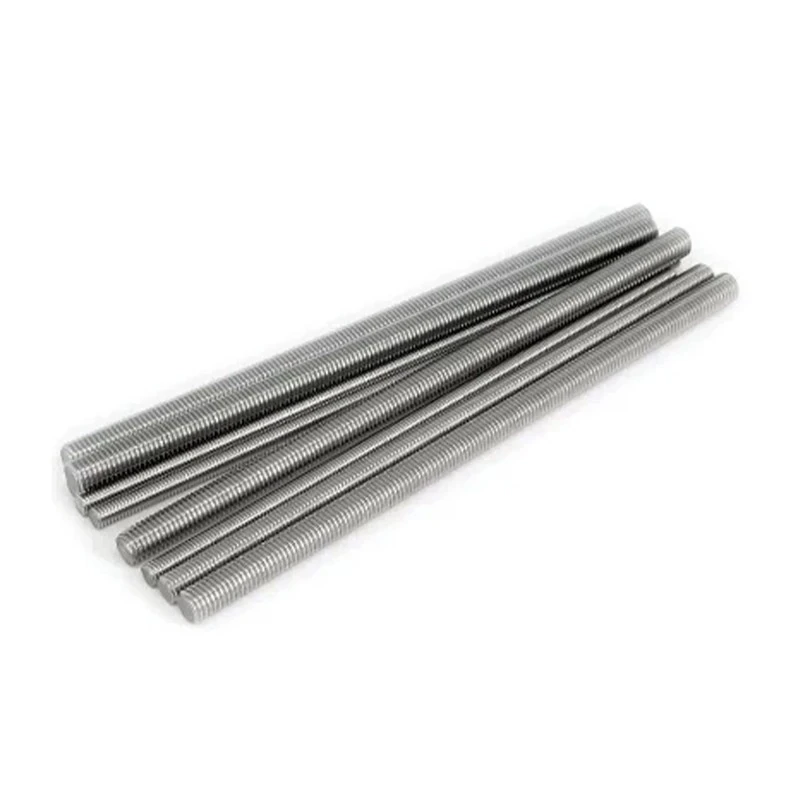

Full Thread Rods Full Thread Studs HDG YZP ZINC PLATED
Product name M5 -52 all thread stud bolts full threaded rod threaded bar
Standard: DIN & ANSI & JIS & IFI
Thread: unc, unf, metric thread
Material: carbon steel, alloy steel, stainless steel
Finish: Zinc Plated, HDG, Black, Bright, GOEMET
Packing: bulk in cartons (25kg Max.)+wood Pallet
Leading Time: 20-30 days or based on order required

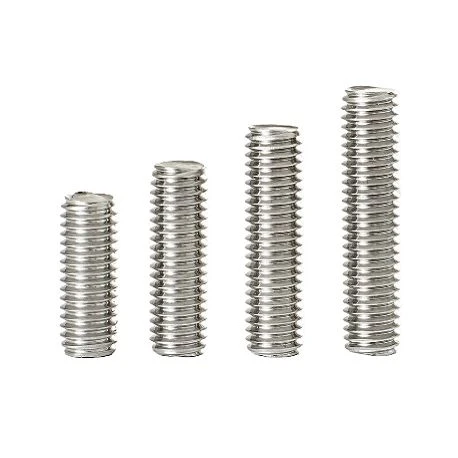

Product Information
DIN975 threaded rod is a commonly used mechanical connector, also known as threaded rod. It is durable and has strong load-bearing capacity and is widely used in engineering and manufacturing industries. Its special design allows it to easily connect and fix various equipment and structures, providing convenience for engineering construction.
Differences Between DIN975 And DIN976
DIN975 tooth bar is composed of a threaded column with full thread and no head. This is a part used for fastening. Its advantage is that it is not limited by the thread length and is easy to use. DIN975 tooth bars are divided into carbon steel, stainless steel and metal in terms of materials. The performance levels of carbon steel tooth bars are 4.6, 5.6 and 5.8. The applicable performance levels should be in accordance with the product standards.
Relatively speaking, DIN976 tooth bar is a shorter tooth bar. Although both consist of a fully threaded threaded post, the DIN976 threaded bar has a head. In addition, DIN976 tooth bar is similar in structure to DIN975 tooth bar, but its length is shorter.
Standard: Threaded rod DIN 975 - 1986
|
Thread size |
M2 |
M2.5 |
M3 |
M3.5 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
|
|
d |
||||||||||||||
|
P |
Coarse thread |
0.4 |
0.45 |
0.5 |
0.6 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
2.5 |
|
Fine thread |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
1 |
1.25 |
1.25 |
1.5 |
1.5 |
1.5 |
|
|
Fine thread |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
1 |
1.5 |
/ |
/ |
/ |
|
|
L |
±10 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
1K piece weight (steel)≈kg |
18.7 |
30 |
44 |
60 |
78 |
124 |
177 |
319 |
500 |
725 |
970 |
1330 |
1650 |
|
|
Thread size |
M20 |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
M39 |
M42 |
M45 |
M48 |
M52 |
|
|
d |
|||||||||||||
|
P |
Coarse thread |
2.5 |
2.5 |
3 |
3 |
3.5 |
3.5 |
4 |
4 |
4.5 |
4.5 |
5 |
5 |
|
Fine thread |
1.5 |
1.5 |
2 |
2 |
2 |
2 |
3 |
3 |
3 |
3 |
3 |
3 |
|
|
Fine thread |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|
|
L |
±10 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
1K piece weight (steel)≈kg |
2080 |
2540 |
3000 |
3850 |
4750 |
5900 |
6900 |
8200 |
9400 |
11000 |
12400 |
14700 |
|
