HDG LAG BOLT

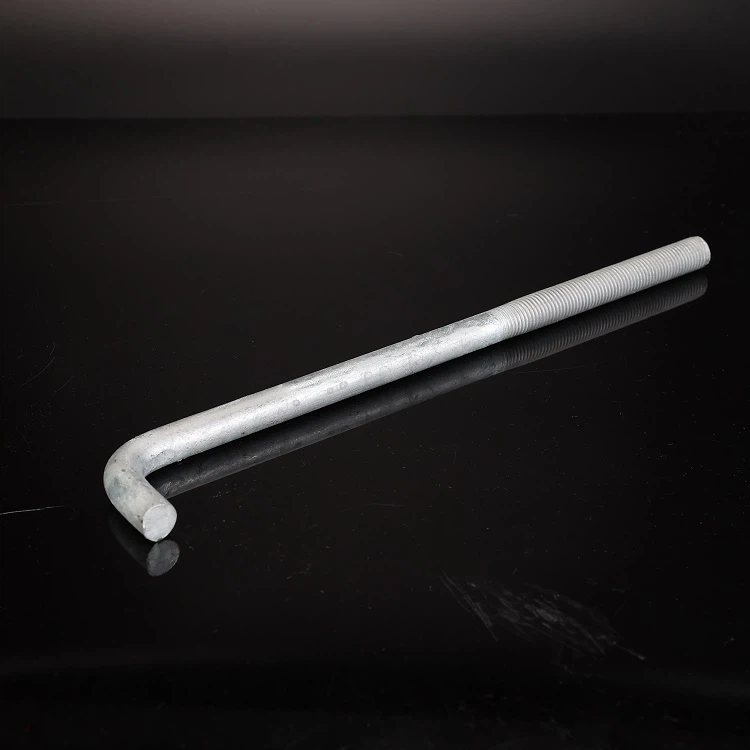

Grade 8.8 Galvanized Steel HDG L Bolt
Hanger Bolt L Shape Hook Anchor Bolt
Product name Grade 8.8 galvanized steel HDG L bolt
Standard: non-standard
Thread: unc, unf, metric thread
Material: carbon steel, alloy steel, stainless steel
Finish: Zinc Plated, HDG, Black, Bright, GOEMET
Packing: bulk in cartons (25kg Max.)+wood Pallet
Leading Time: 20-30 days or based on order required
Product Information
L-shaped anchor bolts are common basic components for anchoring steel columns and other anchors. They are named because of their "L" shape.
Also known as: straight hook anchor bolts, 7-figure anchor bolts, anchor anchors, anchor bolts, anchor screws, anchor wires, etc. It is specially designed to be buried in concrete foundations and used as a base for fixing various steel structure support columns and machinery and equipment.
Level 3.6, Level 4.8, Level 5.8, Level 6.8 and Level 8.8. The tensile capacity of grade 3.6 7-shaped anchor bolts is the tensile capacity of the steel itself. The size is equal to the cross-sectional area multiplied by the tensile strength design value (140MPa), which is the designer's allowable tensile bearing capacity. The tensile strength of anchor bolts directly processed from Q345B or 16Mn raw materials can reach a tensile strength of 5.8. The tensile strength of grade 4.8, grade 5.8, grade 6.8 and grade 8.8 refers to the requirements for mechanical properties in GB/T3098.1.
Material
Q235, Q345B, 16Mn. Generally made of Q235 steel, Q345B or 16Mn materials are used for high strength products. Products with 8.8 strength level are also made of 40Cr material. Occasionally, they are also processed with secondary or tertiary rebar.
STANDARD
Hook Bolts, Right Angle Bend (F468, F593, F1554, A307, A193/A193M, A320/A320, SAE J429)
|
Diam |
3/8 |
3/8 |
3/8 |
3/8 |
3/8 |
3/8 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
|
|
d |
||||||||||||
|
PP |
16 |
16 |
16 |
16 |
16 |
16 |
13 |
13 |
13 |
13 |
13 |
|
|
L |
Diam |
6 |
8 |
10 |
12 |
14 |
16 |
6 |
8 |
10 |
12 |
14 |
|
Max |
6.125 |
8.125 |
10.125 |
12.125 |
14.125 |
16.125 |
6.125 |
8.125 |
10.125 |
12.125 |
14.125 |
|
|
Min |
5.875 |
7.875 |
9.875 |
11.875 |
13.875 |
15.875 |
5.875 |
7.875 |
9.875 |
11.875 |
13.875 |
|
|
n |
Diam |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
Max |
1.125 |
1.125 |
1.125 |
1.125 |
1.125 |
1.125 |
1.125 |
1.125 |
1.125 |
1.125 |
1.125 |
|
|
Min |
0.875 |
0.875 |
0.875 |
0.875 |
0.875 |
0.875 |
0.875 |
0.875 |
0.875 |
0.875 |
0.875 |
|
|
b |
Max |
1.625 |
1.625 |
1.625 |
1.625 |
1.625 |
1.625 |
2.125 |
2.125 |
2.125 |
2.125 |
2.125 |
|
Min |
1.375 |
1.375 |
1.375 |
1.375 |
1.375 |
1.375 |
1.875 |
1.875 |
1.875 |
1.875 |
1.875 |
|
|
Diam |
1/2 |
1/2 |
5/8 |
5/8 |
5/8 |
5/8 |
5/8 |
5/8 |
5/8 |
3/4 |
3/4 |
|
|
d |
||||||||||||
|
PP |
13 |
13 |
11 |
11 |
11 |
11 |
11 |
11 |
11 |
10 |
10 |
|
|
L |
Diam |
16 |
18 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
8 |
10 |
|
Max |
16.125 |
18.125 |
6.125 |
8.125 |
10.125 |
12.125 |
14.125 |
16.125 |
18.125 |
8.188 |
10.188 |
|
|
Min |
15.875 |
17.875 |
5.875 |
7.875 |
9.875 |
11.875 |
13.875 |
15.875 |
17.875 |
7.812 |
9.812 |
|
|
n |
Diam |
1 |
1 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
3 |
3 |
|
Max |
1.125 |
1.125 |
2.125 |
2.125 |
2.125 |
2.125 |
2.125 |
2.125 |
2.125 |
3.188 |
3.188 |
|
|
Min |
0.875 |
0.875 |
1.875 |
1.875 |
1.875 |
1.875 |
1.875 |
1.875 |
1.875 |
2.812 |
2.812 |
|
|
b |
Max |
2.125 |
2.125 |
4.188 |
4.188 |
4.188 |
4.188 |
4.188 |
4.188 |
4.188 |
4.25 |
4.25 |
|
Min |
1.875 |
1.875 |
3.812 |
3.812 |
3.812 |
3.812 |
3.812 |
3.812 |
3.812 |
3.75 |
3.75 |
|
|
Diam |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
1 |
1 |
1 |
1 |
1 |
1 |
|
|
d |
||||||||||||
|
PP |
10 |
10 |
10 |
10 |
10 |
8 |
8 |
8 |
8 |
8 |
8 |
|
|
L |
Diam |
12 |
14 |
16 |
18 |
24 |
10 |
12 |
14 |
16 |
18 |
24 |
|
Max |
12.188 |
14.188 |
16.188 |
18.188 |
24.25 |
10.188 |
12.188 |
14.188 |
16.188 |
18.188 |
24.25 |
|
|
Min |
11.812 |
13.812 |
15.812 |
17.812 |
23.75 |
9.812 |
11.812 |
13.812 |
15.812 |
17.812 |
23.75 |
|
|
n |
Diam |
3 |
3 |
3 |
3 |
3 |
3.5 |
3.5 |
3.5 |
3.5 |
3.5 |
3.5 |
|
Max |
3.188 |
3.188 |
3.188 |
3.188 |
3.188 |
3.688 |
3.688 |
3.688 |
3.688 |
3.688 |
3.688 |
|
|
Min |
2.812 |
2.812 |
2.812 |
2.812 |
2.812 |
3.312 |
3.312 |
3.312 |
3.312 |
3.312 |
3.312 |
|
|
b |
Max |
4.25 |
4.25 |
4.25 |
4.25 |
4.25 |
6.25 |
6.25 |
6.25 |
6.25 |
6.25 |
6.25 |
|
Min |
3.75 |
3.75 |
3.75 |
3.75 |
3.75 |
5.75 |
5.75 |
5.75 |
5.75 |
5.75 |
5.75 |
|
