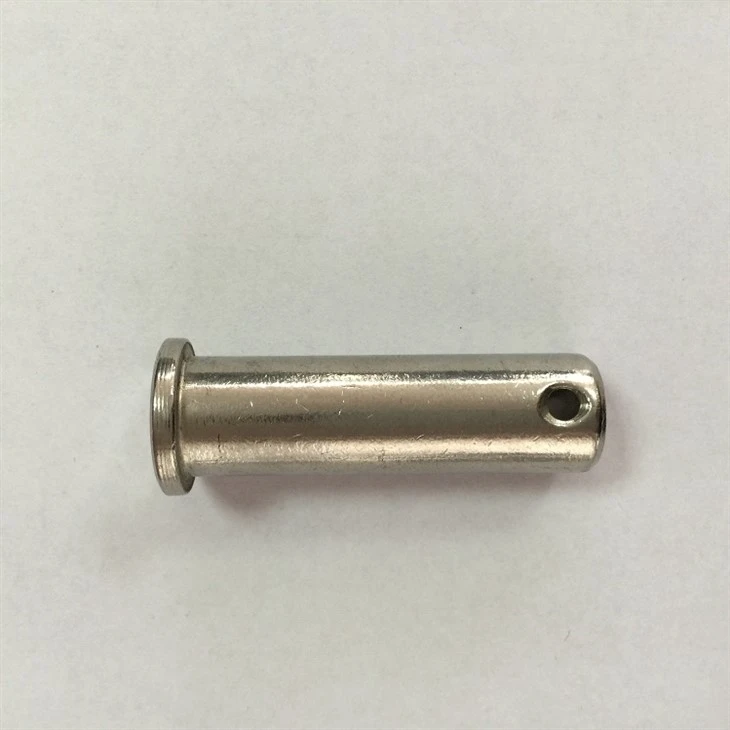

304 Stainless Steel Clevis Pins With Head
Shaft Flat Head With Hole Pin Bolt

Item Name: Stainless Steel Clevis Pin
MOQ: 1000PCS
Pin Type: Clevis Pin
Standard: DIN, ASTM/ANSI JIS En ISO,as,GB
Raw Material: Stainless Steel304/316
Transport Package: Carton+pallet
Specification: M3-M24
HS Code: 7319300000

Product Information

A stainless steel clevis pin is a type of fastener made from stainless steel, a corrosion-resistant alloy. It typically consists of a cylindrical body with a hole for a cotter pin or other locking mechanism at one end and a flat or rounded head at the other end.
Stainless Steel Clevis Pins are highly popular in the engineering and construction industries because of their reliability and durability. They are often used in machinery, heavy equipment, and other complex systems because they can withstand high levels of stress and pressure. They are also frequently used in marine applications due to their resistance to saltwater corrosion.

Is A Clevis Pin Stronger Than A Bolt?

When it comes to strength, both clevis pins and bolts are reliable options. However, the strength of each depends on the size, grade, and application. In most cases, a properly sized and installed bolt can withstand higher loads than a comparably sized clevis pin.

Bolts are commonly used in applications that require high tensile strength, making them ideal for heavy duty machinery and structures. The material and grade of bolts can also be tailored to a specific application, further increasing their strength and durability.

Clevis pins are typically used in applications where flexibility and movability are required. They are commonly used in agricultural, automotive, and marine applications where frequent disassembly is necessary. Clevis pins are designed to withstand shear forces, which are forces that occur when two materials slide against one another in a parallel direction.

Overall, both clevis pins and bolts are strong options and are chosen based on their intended use. To ensure the strength and reliability of each, it is important to select the correct size, grade, and material for the intended application.

Clevis Pin With Head - Type A and B

product-627-313

Diam		Φ3	Φ4	Φ5	Φ6	Φ8	Φ10	Φ12	Φ14	Φ16	Φ18	Φ20	Φ22	Φ24
d
d	Max=Diam (h11)	3	4	5	6	8	10	12	14	16	18	20	22	24
d	Min	2.94	3.925	4.925	5.925	7.91	9.91	11.89	13.89	15.89	17.89	19.87	21.87	23.87
dk	Max=Diam (h14)	5	6	8	10	14	18	20	22	25	28	30	33	36
dk	Min	4.7	5.7	7.64	9.64	13.57	17.57	19.48	21.48	24.48	27.48	29.48	32.38	35.38
k	Diam (js14)	1	1	1.6	2	3	4	4	4	4.5	5	5	5.5	6
	Max	1.125	1.125	1.725	2.125	3.125	4.15	4.15	4.15	4.65	5.15	5.15	5.65	6.15
	Min	0.875	0.875	1.475	1.875	2.875	3.85	3.85	3.85	4.35	4.85	4.85	5.35	5.85
d1	Max=Diam (H13)	0.8	1	1.2	1.6	2	3.2	3.2	4	4	5	5	5	6.3
d1	Max	0.94	1.14	1.34	1.74	2.14	3.38	3.38	4.18	4.18	5.18	5.18	5.18	6.52
Lh	Min	1.6	2.2	2.9	3.2	3.5	4.5	5.5	6	6	7	8	8	9
r		0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	1	1	1	1
