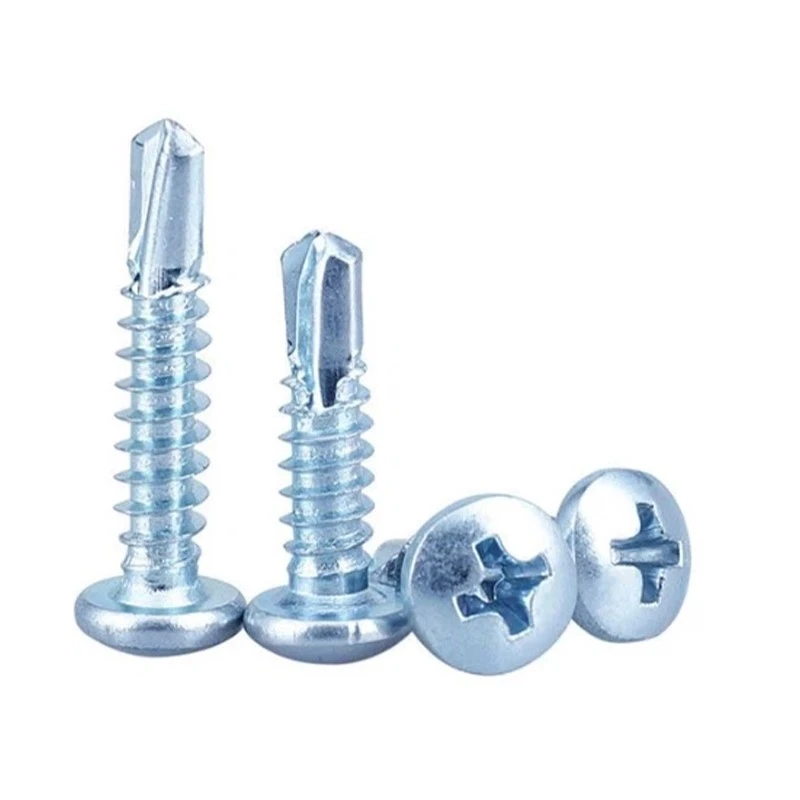

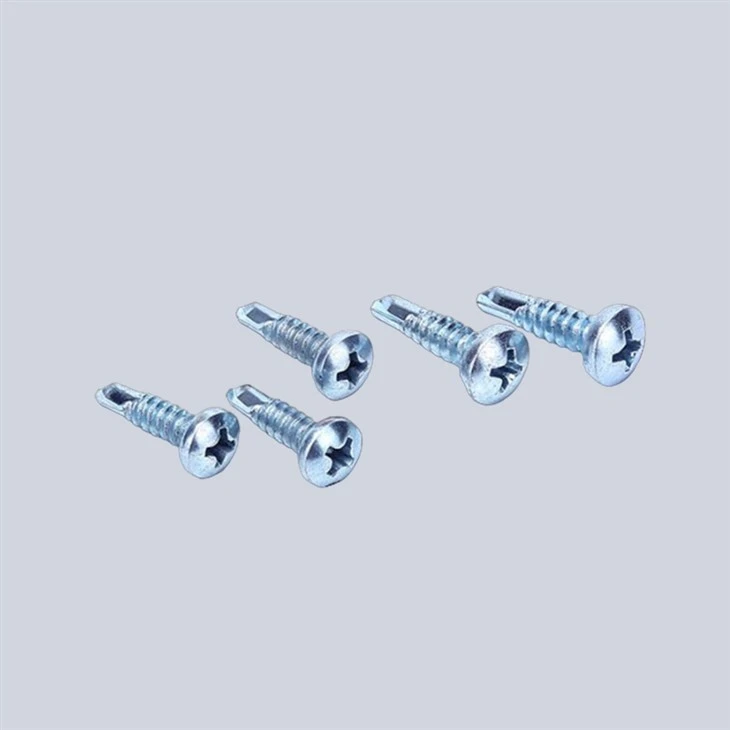

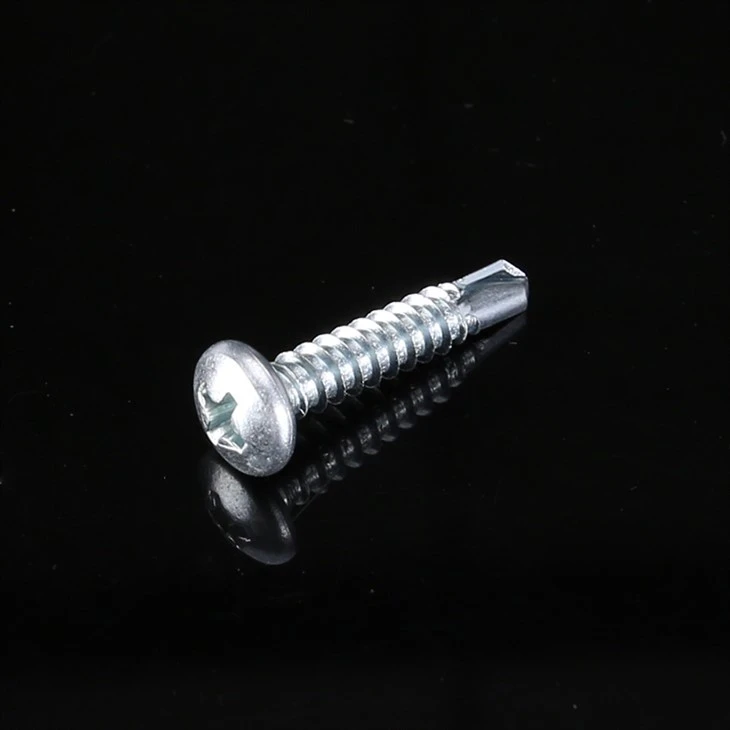

Pan head Phillips drive self-drilling screw
Pan head Phillips drive self- drilling screw is a fastener specifically designed to offer convenience and efficiency in assembling materials. With its distinct features, this type of screw eliminates the need for pre- drilling holes before fastening. The Pan head refers to its domed shape, providing a larger contact area for distributing the load and increased stability. The Phillips drive ensures easy installation using a Phillips screwdriver, commonly found in most toolboxes. However, the most notable characteristic of these screws is their self- drilling capability. It means that the screw itself can create a pilot hole while being fastened, effectively reducing the number of steps required during assembly. This feature not only saves time and effort but also enhances the overall strength and integrity of the joint. Whether used in drywall, metal, or wood applications, Pan head Phillips drive self- drilling screws offer fast and reliable fastening solutions, making them a popular choice in various construction, automotive, and DIY projects.
Specification
|
Product name |
DIN7504N Pan head phillips drive self drilling screw |
|
Size |
M3-M48 |
|
Grade |
4.8, 6.8, 8.8, 10.9, 12.9, A2-70, A4-80 |
|
Standard |
ISO, GB, BS, DIN, ANSI,JIS, Non-standard |
|
Material |
1. Stainless steel: 201,303,304,316,410 |
|
2. Carbon steel: C1006,C1010,C1018,C1022,C1035K,C1045 |
|
|
3. Copper: H62,H65,H68 |
|
|
Surface treatment |
Zn- Plated,Passivated,Polish,Black ,Plain,Chrome plated,Hot |
|
Package |
Plastic bag / small box +outer carton +pallets |
What Are The Key Characteristics Of Self-Drilling Screws That Make Them Suitable For Metal Applications?
Self-drilling screws are specifically designed for metal applications due to several key characteristics:
Drill Bit-Like Point
Self-drilling screws have a sharp, drill bit-like point that allows them to penetrate metal surfaces without the need for a pre-drilled hole. This feature enables efficient and quick installation in metal applications.
Hardened Steel Construction
Many self-drilling screws are made from hardened steel, which provides the necessary strength and durability to penetrate and securely fasten into metal without becoming damaged or deformed during installation.
Thread Design
The threads on self-drilling screws are engineered to effectively grip and secure into metal, providing a strong and reliable connection. This thread design is optimized for metal applications, ensuring a secure and long-lasting fastening solution.
Corrosion Resistance
Self-drilling screws for metal applications often feature coatings or materials that provide corrosion resistance, protecting the fastener from rust and other forms of deterioration when exposed to the elements.
These characteristics collectively make self-drilling screws well-suited for metal applications, offering efficient installation, strong fastening capabilities, and durability in challenging environments.
