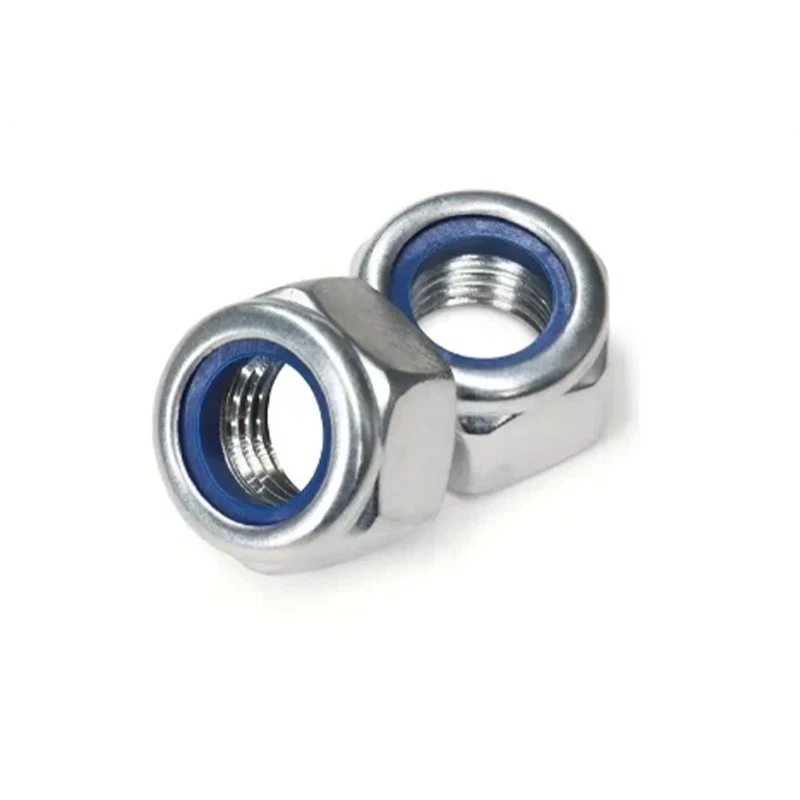

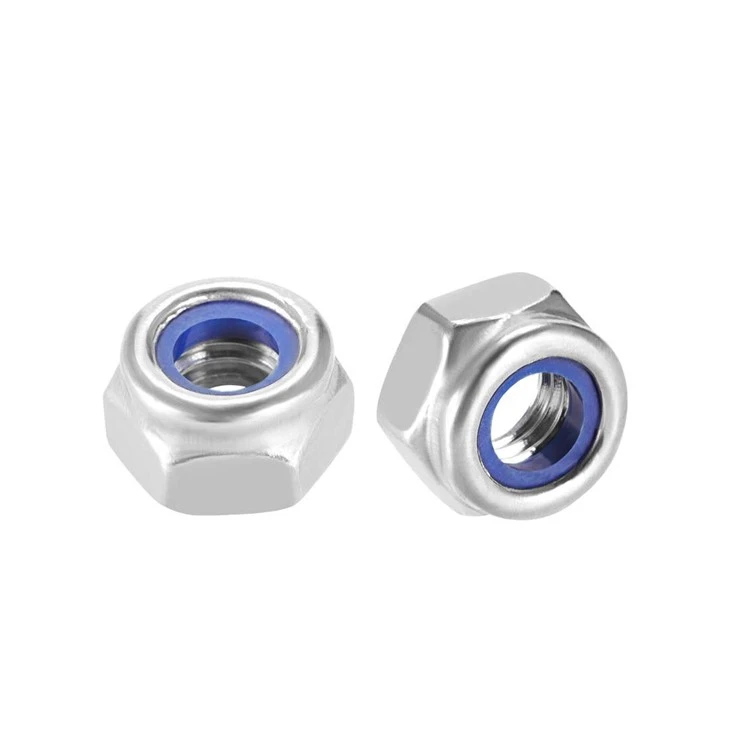

DIN985 Nylon Insert Lock Nut inforation

DIN 985 Nylon self-locking nut is a new type of high anti vibration and anti loose fastening parts, which can be used in various mechanical and electrical products with temperature from – 50 ℃ to 100 ℃. This is because its anti vibration and anti loose performance is much higher than other anti loose devices, and its vibration life is several times or even dozens of times higher. At present, more than 80% of the accidents of machinery and equipment are caused by the loosening of fasteners, especially in mining machinery. The use of nylon self-locking nuts can eliminate the major accidents caused by loose fasteners.

This lock nut features a hex-shaped design and is made from high-quality zinc-plated steel, ensuring durability and longevity.

What sets this lock nut apart is its nylon insert, which provides a strong and reliable grip. The nylon insert acts as a locking mechanism, preventing the nut from loosening over time. This makes it ideal for applications that experience vibration or repetitive stress.

It's easy to install and remove, and its compact size makes it ideal for tight spaces.

Order yours now to see the difference a dependable locking nut that can withstand the test of time can make in your projects!

STANDARD: DIN 985

DIN985 Hexagon blue Nylon Insert Lock Nut

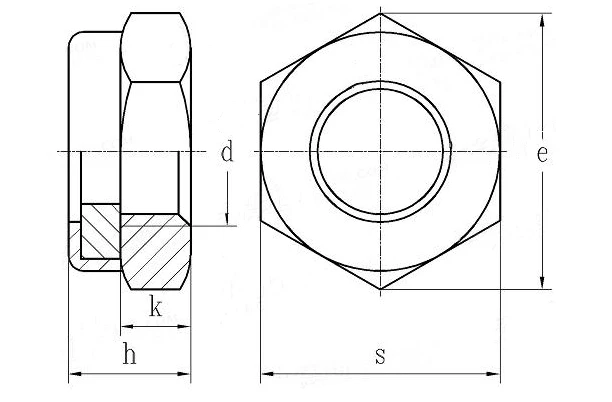

product-612-402

Thread d		M4	M5	M6	M8	M10	M12	M16	M20	M24	M30	M36
P	Pitch	0.7	0.8	1	1.25	1.5	1.75	2	2.5	3	3.5	4
e	Min	7.66	8.79	11.05	14.38	17.77	20.03	26.75	32.95	39.55	50.85	60.79
h	Max	5	5	6	6.76	8.56	10.23	12.42	14.9	17.8	22.2	25.5
h	Min	4.52	4.52	5.52	6.18	7.98	9.53	11.32	13.1	16	20.1	23.4
k	Min	1.95	2.45	2.9	3.7	4.7	5.7	7.42	9.1	10.9	13.9	16.9
s	Max	7	8	10	13	16	18	24	30	36	46	55
s	Min	6.78	7.78	9.78	12.73	15.73	17.73	23.67	29.16	35	45	53.8
