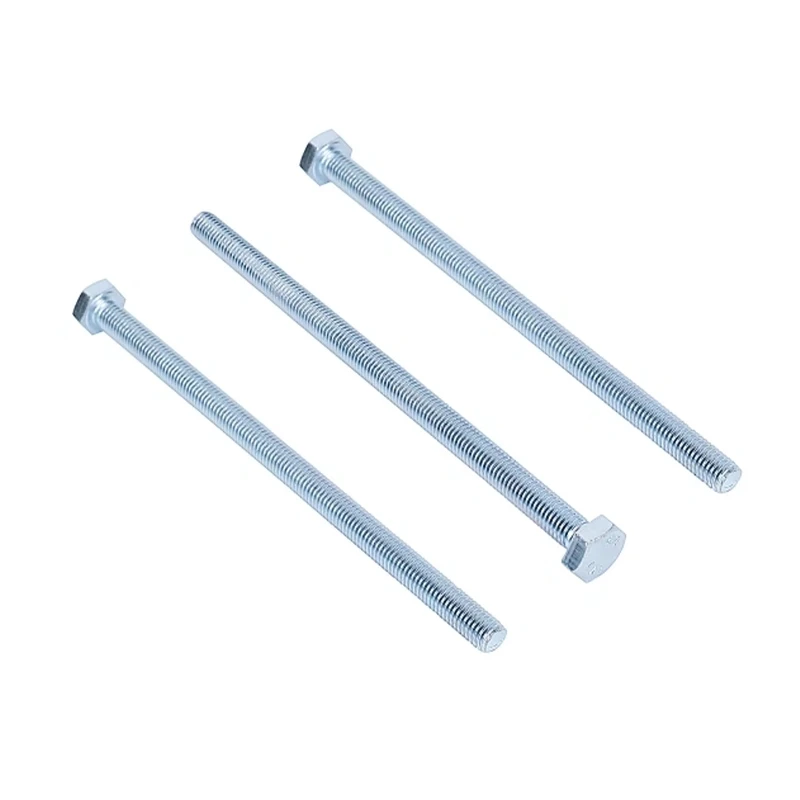

Name: China DIN933 Metric Steel Galvanized Hex Bolt Full Thread Manufacturers Suppliers - Gete Hardware
Brand: Gete
SKU: 241885239

Product information

The DIN933 standard is applicable to fully threaded hexagonal bolts with thread diameters M1.6-M52 and product grades A and B. Grade A: d≤24mm and l≤10d or l≤150mm (according to the smaller value). Grade B: d>24 mm or l>10d or 1>150mm. (according to the smaller value). Different product grades have different corresponding opposite side s, diagonal e, thickness k and length tolerance values.

The general thread diameter specifications are M3-M64, and the general carbon steel performance grades are mainly grade 8.8 and grade 10.9. When d≤39mm, refer to ISO898-1. Stainless steel is usually A2-50/A2-70/A4-70/A4-80. When d≤39mm,refer to ISO3506-1 or DIN267-11.

Surface treatment and thread tolerance: DIN933 hexagonal bolts are generally metric (coarse thread) and fine thread, measured in mm. The

tolerance of DIN933 coarse thread is: 6g. The coatings on the market mainly include black boiling, electroplating (blue and white zinc, yellow colored zinc) and non-electrolytic zinc powder covering coating (GEO). The tolerance fit before coating is mainly 6g/6H, and the tolerance zone fit after galvanizing can be 6h/6G. However, after coating, it is affected by the thickness of the surface coating. When testing the thread with a pass-and-stop gauge of the corresponding tolerance,it is also There may be situations where they cannot be matched, and only nuts with matching specifications can be installed and tested.

About us

GETE

Haiyan Gete Hardware Co.,Ltd
Haiyan Gete Hardware Co.,Ltd is a top-rated manufacturer and supplier of fastener products. Our product line ranges including standard fasteners (such as bolts, nuts,screws,studs and anchors) and non-standard parts which customize according to the drawings from the customers .If you're in need of top-quality fasteners, Contact us today to learn more about our products and services.
