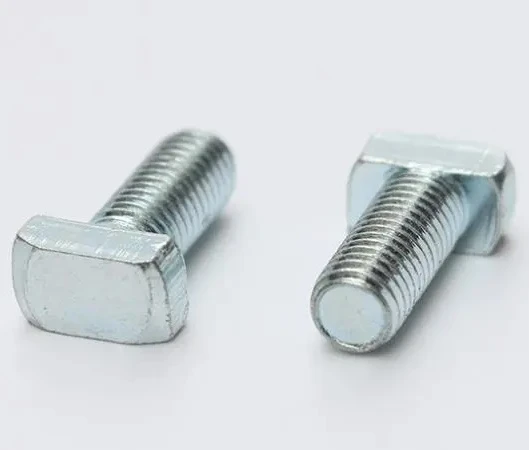

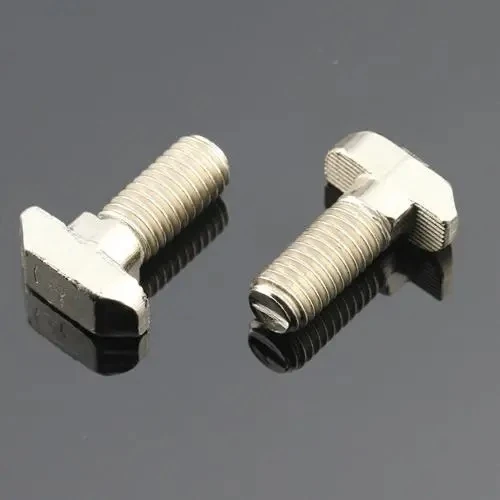

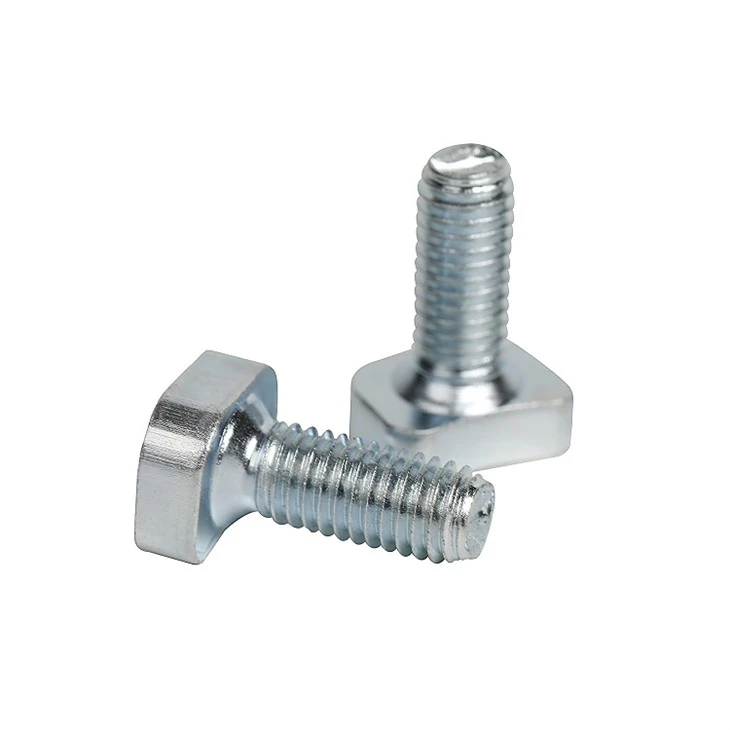

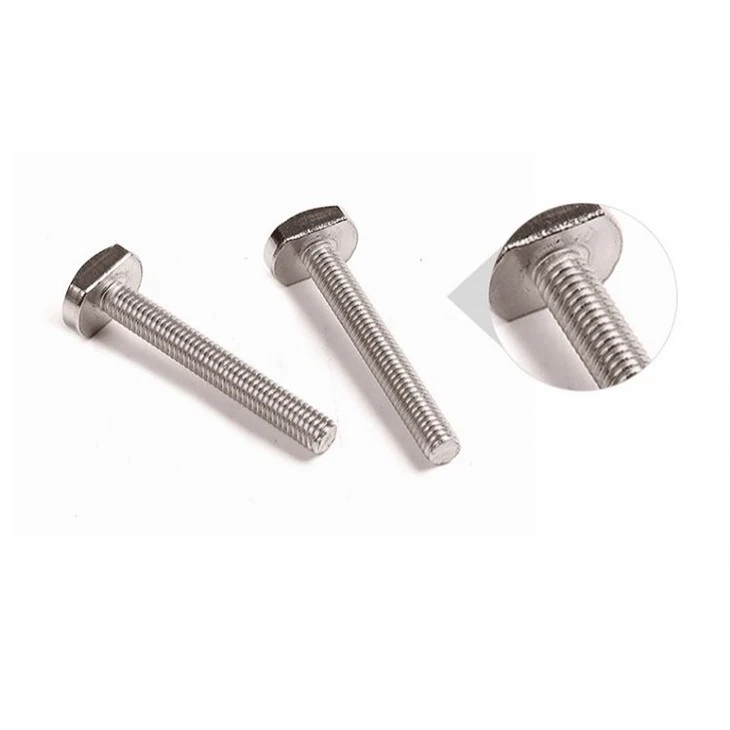

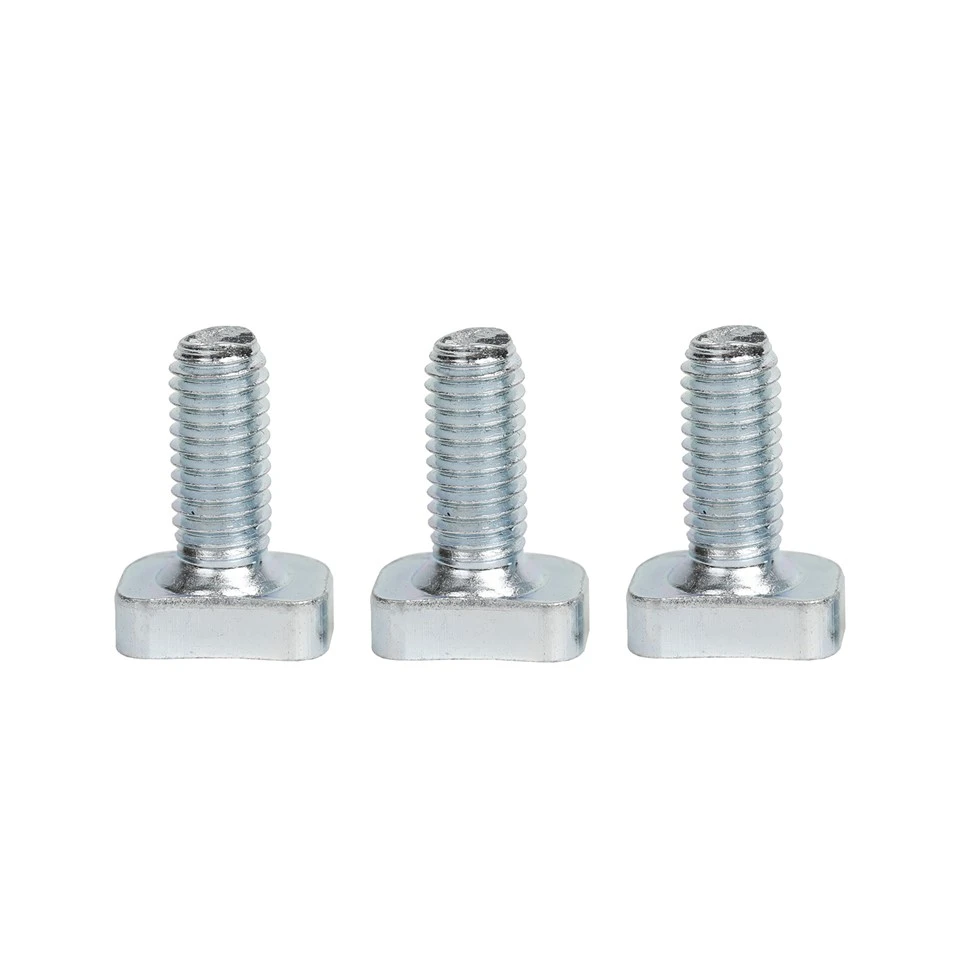

T HEAD BOLT ZINC PLATED /STAINLESS STEEL HAMMER HEAD BOLT
The T-head bolt typically consists of a threaded shank and a T-shaped head. The shank is threaded along its entire length and is inserted through a pre-drilled hole in the material. The T-shaped head is then inserted into a corresponding slot or recess, preventing the bolt from rotating when the nut is tightened.
These bolts are commonly used in applications such as machine tool fixtures, woodworking jigs, and other fixtures where a strong, vibration-resistant fastening is required. They are available in various materials and sizes to accommodate different applications and are often used in conjunction with T-slot nuts or other specialized fasteners.
Standards provided: DIN, BS, ANSI/ASME/ASTMISOEN, GOST etc
Diameter range: M6-M48
Length range: 30-400
Grades: 4.8, 5.8, 6.8, 8.8, 9.8, 10.9.etc
Raw Materials: Carbon steel, stainless steel, alloy steel, brass,nonferrous metals, etc
Surface Treatment: Plain, Zinc Plate, Yellow Zinc Plate, Hot Dip Galvanizing, Blackening. Etc

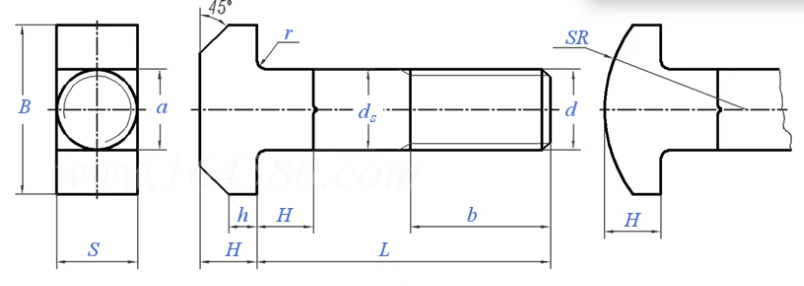

Standard T HEAD BOLT JB /T 1709 - 1991
|
Thread |
M8 |
M10 |
M12 |
M16 |
M20 |
M24 |
|
d |
||||||
|
B |
15 |
20 |
25 |
30 |
38 |
46 |
|
s |
8 |
10 |
12 |
16 |
20 |
24 |
|
H |
6 |
7 |
9 |
12 |
14 |
16 |
|
a |
8 |
10 |
12 |
16 |
20 |
24 |
|
h |
3 |
3.5 |
4.5 |
6 |
7 |
8 |
|
r |
0.5 |
0.5 |
0.5 |
1 |
1 |
1.5 |
|
SR |
14 |
18 |
22 |
28 |
35 |
42 |
How To Install T-Bolts?
Choose the appropriate T-bolt: Choose a T-bolt of appropriate length based on the size and weight of the workpiece to be fixed.
Prepare tools: A set of Allen wrenches or corresponding screwdrivers are required for tightening operations.
Locate the T-slot: Find the location of the T-slot to be fixed and make sure it is clean and free of debris.
Screw in the bolt: Use an Allen wrench or screwdriver to screw the T-bolt into the T-slot until the desired tightness is achieved.
Check the tightening effect: rotate the bolt appropriately to confirm whether the workpiece has been firmly clamped in the T-slot.
