drywall screws information

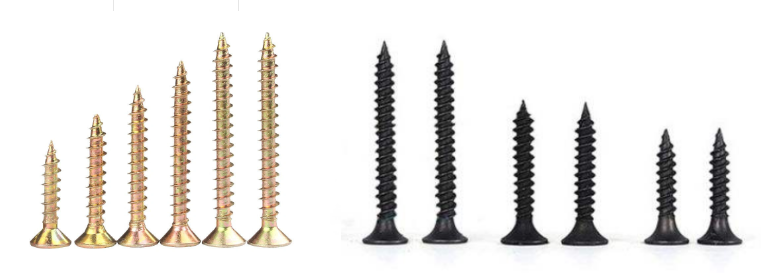

A drywall screw is a type of screw that is specifically designed for use in drywall installations. These screws are made with a sharp point that allows them to easily penetrate the drywall surface and a tapered shank that helps to prevent damage to the surface during installation. They are also coated with a special material that provides them with additional grip and helps to prevent them from slipping during installation.
Drywall screws, also called flat-head nails, are a type of fixing tool used to fix light decorative materials (such as paintings, wall clocks, etc.), especially suitable for wall materials such as gypsum boards and fiberboards. The diameter of drywall screws is usually between 1.2mm-1.5mm, the length is between 20mm-50mm, the surface is smooth, often galvanized or copper-plated, which can effectively prevent rust.
We produce the following specifications of drywall screws
| Fine thread standard | |||||
| head width | thread diamter | diameter | |||
| 6# | 3.5 | 7.9-8.10 | 3.40-3.60 | 13-19 | 0.5 |
| 7# | 3.9 | 7.9-8.10 | 3.70-3.90 | 25-30 | 0.8 |
| 8# | 4.2 | 7.9-8.10 | 4.0-4.30 | 25-30 | 1.2 |
| 10# | 4.8 | 8.5-9.0 | 4.70-4.90 | 55-90 | 1.5 |
| 100-152 | 2.5 | ||||
| Coarse thread standard | |||||
| head width | thread diamter | diameter | |||
| 6# | 3.5 | 7.9-8.10 | 3.65-3.90 | 13-19 | 0.5 |
| 7# | 3.9 | 7.9-8.10 | 3.90-4.20 | 25-30 | 0.8 |
| 8# | 4.2 | 7.9-8.10 | 4.30-4.60 | 25-30 | 1.2 |
| 10# | 4.8 | 8.5-9.0 | 4.90-5.30 | 55-90 | 1.5 |

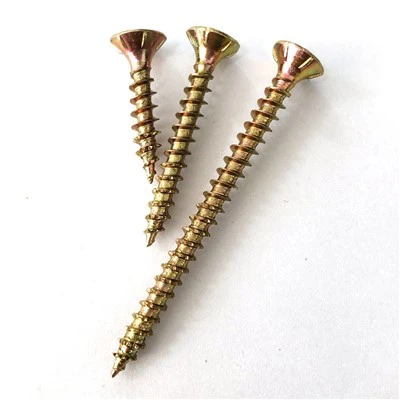

What is the difference between drywall screws and chipboard screws?
Even though drywall screws and chipboard screws are both screws, fastener goods nonetheless differ between them. What distinguishes drywall screws from chipboard screws, then?
Both types of screws have round heads, countersunk, and semi-countersunk looks. However, fiberboard screws often have a full thread, whereas drywall screws have a somewhat deeper groove. The trumpet head's design is the most noticeable aspect of drywall screws. It can also be separated into single-line coarse-thread drywall screws and double-line fine-thread drywall screws based on the thread.
Use: Fiberboard screws can be used to replace wood screws when installing power tools. They are mostly used to connect and fix wooden boards to each other and to thin steel plates. Double-line fine-thread and single-line coarse-thread drywall screws are the two types of drywall screws that are mostly used to join thin metal plates (steel plates, sawn plates, etc.).
Diameter size: There are many diameter sizes of drywall screws. Different specifications of drywall screws have different diameter sizes. The main specifications include 1/2 inch (12.7mm), 5/8 inch (15.9mm), 3/4 inch (19.1mm), 7/8 inch (22.2mm), etc.
Hardness :the hardness of drywall screws is not high, usually around HRC40, but because drywall screws are directly inserted into the wall, they have a strong fixing force and can withstand a certain weight. However, it should be noted that drywall screws are suitable for lighter objects. If you want to fix heavier objects, you need to use some more stable methods.The hardness of fiber screws is relatively high, usually above HRC50, so they can better withstand heavier items. Unlike drywall screws, fiber screws need to be screwed in along the direction of the board, which can better enhance their fixing force and ensure that the items are not easily loosened.
About us
Haiyan Gete Hardware Co.,Ltd
Haiyan Gete Hardware Co.,Ltd is a top-rated manufacturer and supplier of fastener products. Our product line ranges including standard fasteners (such as bolts, nuts,screws,studs and anchors) and non-standard parts which customize according to the drawings from the customers .If you're in need of top-quality fasteners, Contact us today to learn more about our products and services.
Main Products
Package
SMALL PACKAGE
BULK PACKAGE
Workshop
SCREENING MACHINE
FAQ
What is your main product?
Our main products are most kinds of fasteners like screws,bolts,nuts,anchors ,washers and so on,we can also produce the NON-STANDARD fasteners according the customers' drawings or samples .
Is It Possible package according to my Customized requirement?
Yes,the packaging quantity and box print can be customized according your requirement.
How do you ensure the quality?
Always pre-production sample Inspection before mass production.
If you need , we also can send the bulk sample to you for inspecting before delivering the goods .
Trade Terms and Payment Terms?
1.Trade Terms: FOB,CFR,CIF.
